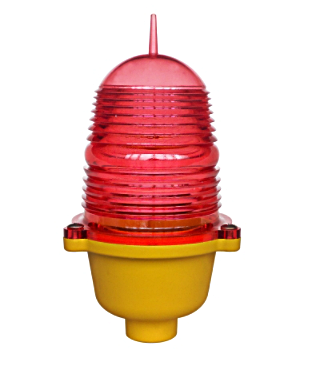

Low intensity LED Aviation Obstruction Light

Product Description

Operating Voltage:

AC 110V/220V, DC 12V/24V/48V

Power Supply Frequency:

50Hz~60Hz

Power Consumption:

≤3W

Working Mode:

Steady burning, or flashing 20~60 times/min

Light Intensity:

Type B ≥32.5cd    Type A≥10cd

Horizontal Out-put:

360°

Vertical Divergence:

10°

Light Source Service Life:

≥20 years

Emitting Color:

Red

Overall Size:

136mm×136mm×220mm

Installation Size:

 3/4inches or 1 inch, chassis install

IP Protection:

IP67

Optical Ambient Brightness:

50/100Lux

Ambient Temperature:

-40℃~70℃

Weight:

1.2kg

Anti-wind Ability:

120m/s


Features
1.PC material with good impact protection strength, thermal stability, high transmittance.
2.Bird spike against bird drop.
3.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100,000hours.
4.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5.About 96% less power than 116W incandescent light.
6.Major maintenance cost saving,Surge protection device inside light.
7.Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9.3/4inch or 1inch installation size and small volume especially being suitable for telecom and flag-pole installation way.
10.There is one switch converting between Flashing mode and Steady-burning mode.
11.Two Years Warranty Period.

Application
Block
Airport
High Mastlamp
Chimney
Bridge
Telecom towers, GSM towers, Electric towers
High-rise Buildings
